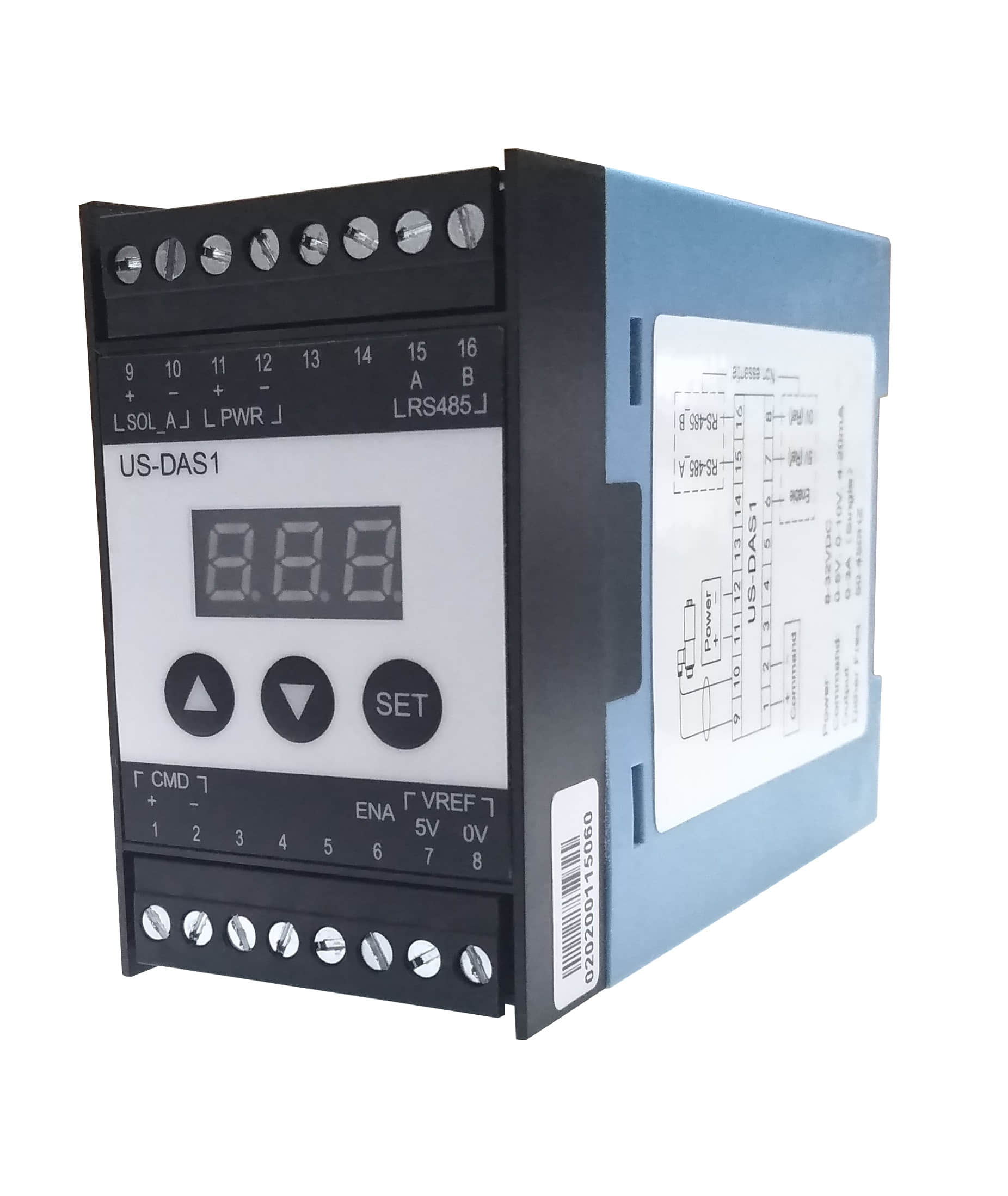

US-DAS1 Single-channel proportional valve amplifier

● Without electrical position feedback

● Single solenoid

● DIN rail mounting

Abundant parameter configuration: multiple command input types, maximum/minimum current, ramp-up and ramp-down time, dither frequency, command dead zone and other parameters are configurable.

Wide voltage and current range: wide input voltage of 8~32 VDC, wide output current of 0~3 A, equipped with RS485 communication interface.

Supports Modbus RTU protocol to realize multi-unit communication and control.

DIN Rail Mounting
Compliant with standard 35 mm DIN rail for quick installation
Fully Adjustable Parameters
Configurable parameters including output current, ramp time, dither frequency, command dead zone, neutral position and more
Intelligent Drive for Single Valve
Suitable for single-solenoid proportional valves, with wide 0–3 A output current
Remote Diagnosis & Control
Equipped with RS485 communication, supports Modbus RTU protocol
Fully Adjustable Parameters
Configurable parameters including output current, ramp time, dither frequency, command dead zone, neutral position and more

Techbical Data

Wiring Example

Example 1
Give an analog command through PLC, CNC, acquisition card, etc.The analog command can be any signal of 0~5V, 0~10V, or 4~20mA.(Modify the parameter “PR1” to the corresponding command type

Example 2:
An analog command is given through a potentiometer, which isconnected to the 5V and 0V reference voltages of the amplifier. (ltis necessary to set the parameter “PA” to 5.) Note: lt isrecommended that the resistance value of the potentiometer be 5KΩor 10KΩ
