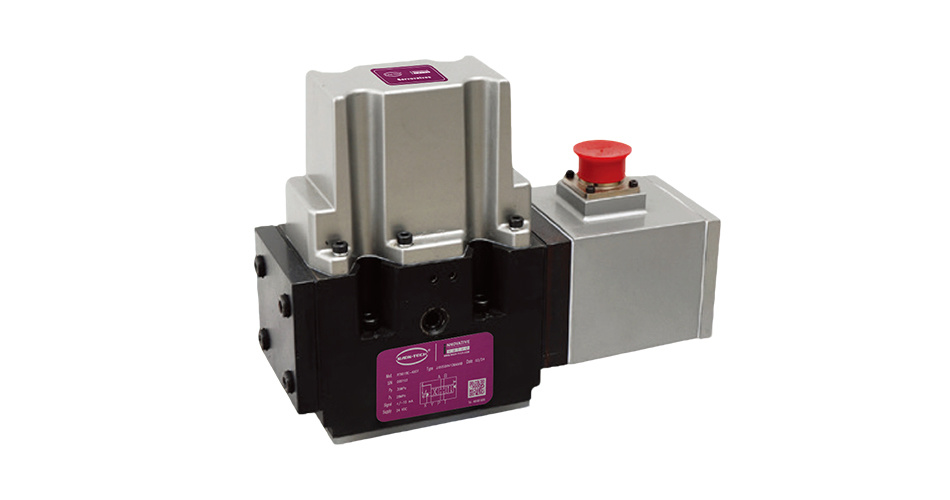

Pilot-Operated Servo valves for Analog Signals RT6615E,(Moog Servo Valve D661/4186/4187/4931/5611/5625c/6313c/6324/4444c/4577c/4636/4469c/4697c/4651/4303c/4539c/4653/4506c)
The RT6615E servo valves have spools that slide in a bushing and are hydraulically pilot-operated. The design offers much higher accuracy and extremely good static and dynamic behavior.
- Maximum pressure: 35 MPa
- Rated flow: 20-200 L/min ( △ PN=7 MPa)
Features:
- 2-stage valve with robust ServoJet pilot valve
- Optimized design of valve bodies for high rated flow
- Improved ServoJet pilot valve design results in excellent dynamic response
- Different fail-safe options available allow the best fit to the application

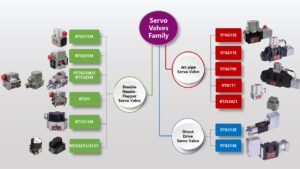

MOOG Servo Valve Equivalent/Replacement
| RADK-TECH | MOOG | Remark | |
| Jet pipe Servo Valve | RT6615E Series | D661 Series | |
| RT6617E Series | D662 Series | ||
| RT6619E Series | D663/664 Series | ||
| Twin flapper-nozzle electro | RT7625M Series | G761 Series | |
| RT7625E Series | D765 Series | ||
| RT7325M Series | 730 Series | ||
| RT6225M Series | 062 Series | ||
| RT6215M Series | G631 Series | ||
| Direct acting proportional | RT6313E Series | D633 Series | |
| RT6315E Series | D634 Series |
