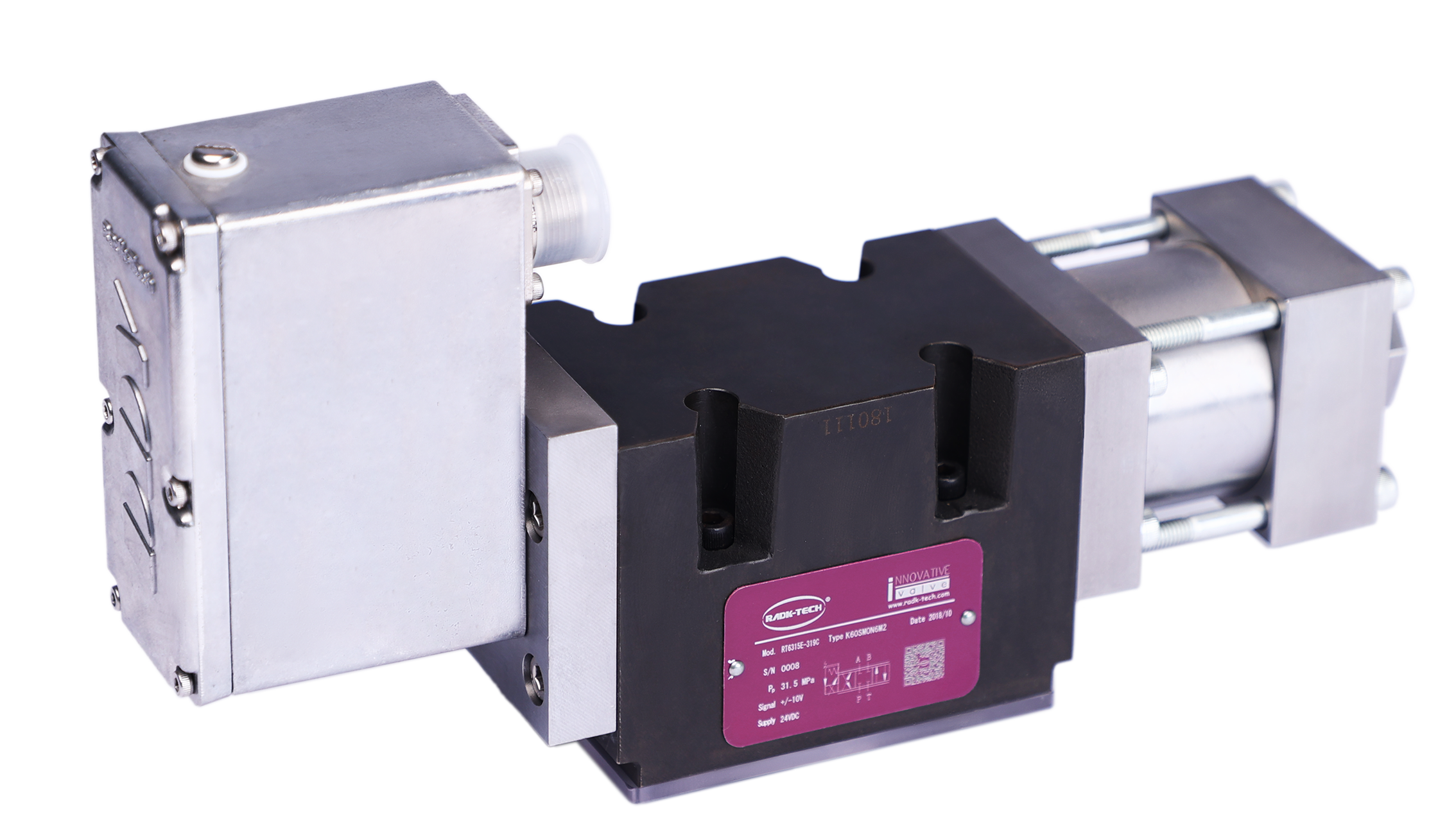

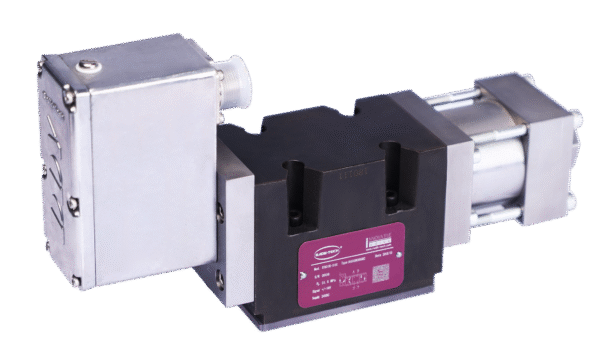

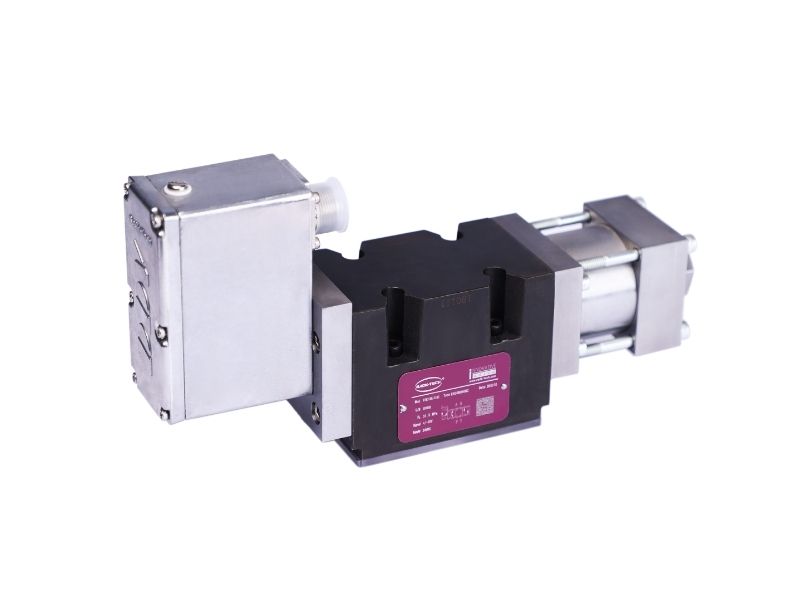

MOOG D634 Equivalent/Replacement, Direct Driven Servo Valves (DDV) for flow control with analog interface, RT6315E
Direct acting proportional servo valve
- Size: 6
- Maximum pressure: 31.5 MPa
- Rated flow:5-40 L/min ( △ PN=7 MPa)
The servo valves offer a direct drive with a permanent magnet linear motor, which moves the valve spool directly and eliminates the need for pilot oil. They are available in nominal sizes 06 in accordance with ISO 4401.
The servo valves were developed with the most demanding customer requirements in mind and are characterized by high functional flexibility, pressure-independent dynamics, high actuating force and low power consumption.
Features:
- Directly driven by linear force motor: No pilot flow required
- Linear force motor with high force range (improves operating limits): No flow limitations
- Directly driven design: Pressure-independent dynamic performance
- Low current consumption at and near hydraulic null
- Spool is in spring-centered position at loss of power supply: Actuator stops
Application
find use in various industrial applications, including:
- Motion control with the highest performance.
- Used for turbine for the power station
MOOG Servo Valve Equivalent/Replacement
| RADK-TECH | MOOG | Remark | |
| Jet pipe Servo Valve | RT6615E Series | D661 Series | |
| RT6617E Series | D662 Series | ||
| RT6619E Series | D663/664 Series | ||
| Twin flapper-nozzle electro | RT7625M Series | G761 Series | |
| RT7625E Series | D765 Series | ||
| RT7325M Series | 730 Series | ||
| RT6225M Series | 062 Series | ||
| RT6215M Series | G631 Series | ||
| Direct acting proportional | RT6313E Series | D633 Series | |
| RT6315E Series | D634 Series |
