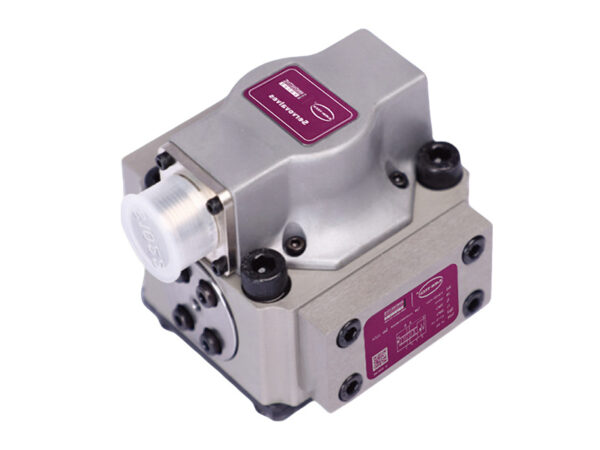

MOOG 761 Equivalent, Pilot Operated Servo Valves for Direct-Operated flow control with analog interface, RT7625M
HIGH PERFORMANCE, TWO-STAGE DESIGN PROVIDING FLOW CONTROL IN A SIMPLE, RUGGED, DEPENDABLE, LONGLIFE DESIGN
- Size: 10
- Maximum pressure: 31.5 MPa
- Rated flow: 4-63 L/min ( △ PN=7 MPa)
This Series Flow Control Servo Valves are throttle valves for 3-way and preferably 4-way applications. They are a high performance, 2-stage design that covers the range of rated flows from 0.5 to 75 l/min (0.125 to 19.5 gpm) at 35 bar (500 psi) valve pressure drop per spool land. The design is simple and rugged for dependable, long life operation. The pilot stage is comprised of a symmetrical, nozzle-flapper torque motor.
Features:
- 2-stage flow control Mechanical Feedback (MFB) Servo Valve
- Nozzle-flapper pilot stage technology provides high dynamics, high resolution and low hysteresis
- High spool driving forces and rugged design ensures long-life operation
- Compact design enables applications with limited footprint
Application
find use in various industrial applications, including:
- Motion control with the highest performance.
- Used for turbine for the power station
MOOG Servo Valve Equivalent/Replacement
| RADK-TECH | MOOG | Remark | |
| Jet pipe Servo Valve | RT6615E Series | D661 Series | |
| RT6617E Series | D662 Series | ||
| RT6619E Series | D663/664 Series | ||
| Twin flapper-nozzle electro | RT7625M Series | G761 Series | |
| RT7625E Series | D765 Series | ||
| RT7325M Series | 730 Series | ||

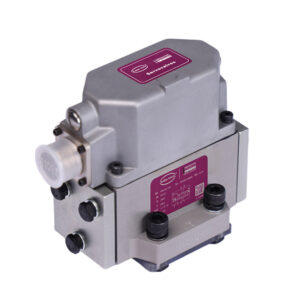

| RT6225M Series | 062 Series | ||
| RT6215M Series | G631 Series | ||
| Direct acting proportional | RT6313E Series | D633 Series | |

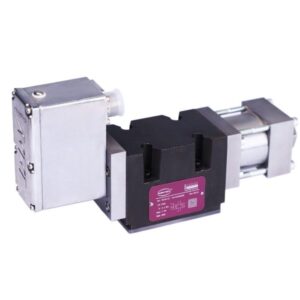

| RT6315E Series | D634 Series |
