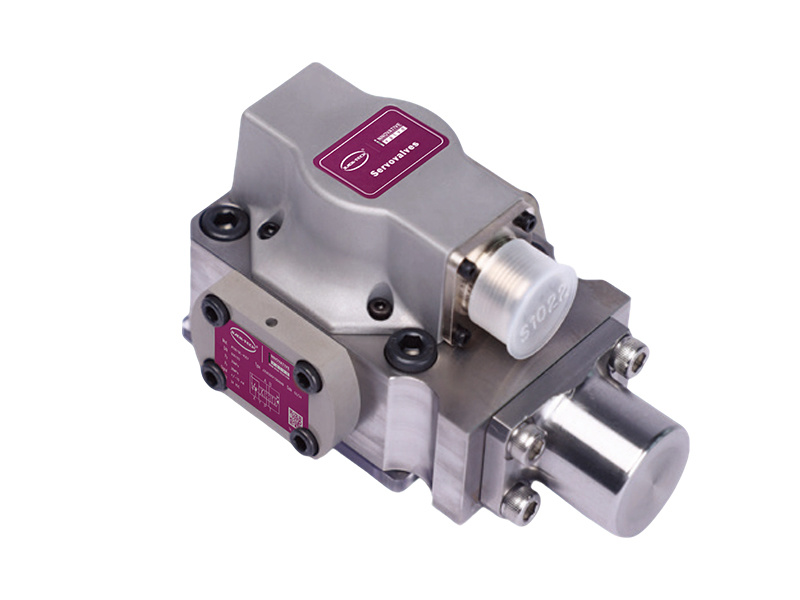

MOOG 730 Equivalent, Pilot Operated Servo Valves for Direct-Operated flow control with analog interface, RT7325M
HIGH PERFORMANCE, TWO-STAGE DESIGN PROVIDING FLOW CONTROL IN A SIMPLE, RUGGED, DEPENDABLE, LONGLIFE DESIGN
- Size: 10
- Maximum pressure: 31.5 MPa
- Rated flow: 4-63 L/min ( △ PN=7 MPa)
This Series is proven technology that performs reliably in machines where high performance, stability and accuracy are required. The valve design is simple and rugged for dependable, long life operation. These valves are suitable for electrohydraulic position, speed, pressure or force control systems with high dynamic response requirements.
Features:
- 2-stage flow control Mechanical Feedback (MFB) Valve
- Nozzle flapper pilot stage for high dynamics, high resolution and low hysteresis
- High spool driving forces, rugged design ensures long-life operation
- High Pressure version available for continuous operation at system pressures up to 8,000psig
- Optional external pilot supply (X-Port) and return (Y-Port) connections
Application
find use in various industrial applications, including:
- Motion control with the highest performance.
- Used for turbine for the power station
MOOG Servo Valve Equivalent/Replacement
| RADK-TECH | MOOG | Remark | |
| Jet pipe Servo Valve | RT6615E Series | D661 Series | |
| RT6617E Series | D662 Series | ||
| RT6619E Series | D663/664 Series | ||
| Twin flapper-nozzle electro | RT7625M Series | G761 Series | |
| RT7625E Series | D765 Series | ||
| RT7325M Series | 730 Series | ||
| RT6225M Series | 062 Series | ||
| RT6215M Series | G631 Series | ||
| Direct acting proportional | RT6313E Series | D633 Series | |
| RT6315E Series | D634 Series |
