D1FPE50FH9NB00 the equivalent replacement for Parker D1FP Series Servo Valve
- Ultra-high frequency response servo valve
- Ultra-high control accuracy
- High contamination resistance
- NG06
- Rated flow: 3–40 L/min (Δp = 35 bar)
For cross-reference, it serves as drop-in alternative for Parker D1FP series.

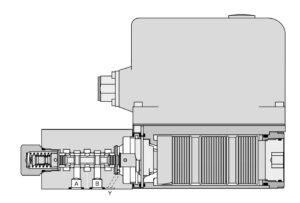

The RT-D1FP adopts servo spool and sleeve construction, direct drive by VCD voice coil motor, integrated digital amplifier and electrical position feedback. Rated flow 3–40 L/min (Δp=35 bar). It delivers ultra-high frequency response of 350Hz and precision up to 0.05%, for position, speed and force control in ultra-precision hydraulic servo systems.
Technical Specifications
- Ultra-High Frequency Response
Dynamic response: ±100% at 120Hz, ±5% at 350Hz, reaching industry-leading level. - Ultra-High Control Accuracy
Hysteresis and position control accuracy of 0.05%, comparable to laboratory-grade equipment. - High Contamination Resistance
Adopts VCD voice coil motor direct drive, featuring large thrust and strong anti-contamination performance.

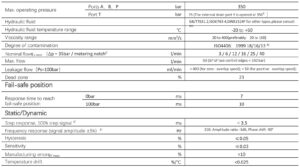

Technical Data
Application
• Hydraulic test benches & material fatigue test rigs
• Precision hydraulic machine tools
• Servo bending machines & small forging presses
• Injection molding & blow molding machines
• 6-DOF motion simulation platforms
• Metallurgical rolling equipment
• Marine diesel engine valve control & marine steering systems
• Automotive production line hydraulic servo fixtures
